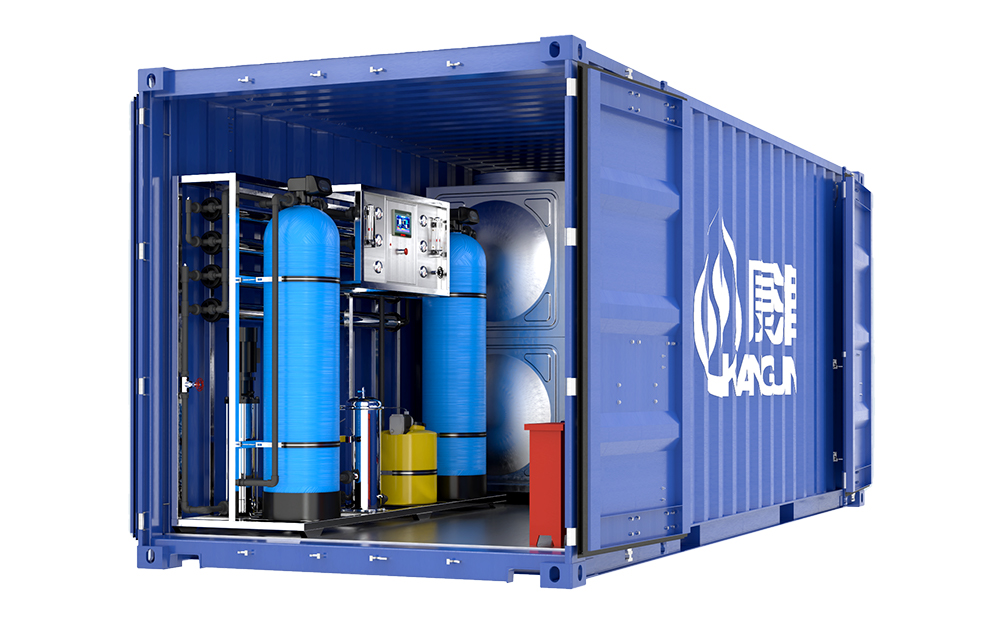

DESCRIPTON OF CONTAINERIZED RO SYSTEM
✪Containerized pure water desalination equipment is to desalinate raw water into pure water to meet the water requirements of the customer's industry.The raw water passes through the pretreatment system of multi-media filter and activated carbon filter to remove particulate impurities, colloids and residual chlorine in the water, and then passes through the reverse osmosis system to remove bacteria, viruses and other microorganisms in the water and most of the heavy metal plasma harmful to the human body.
✪The reverse osmosis permeate passes through the after-treatment system of the UV sterilizer.
✪The overall containerized integrated design of the equipment, the system is debugged before leaving the factory, and only external pipelines and power supplies need to be connected to the site to accelerate the on-site deployment. It can be fully automated, and the operation and maintenance are simple.

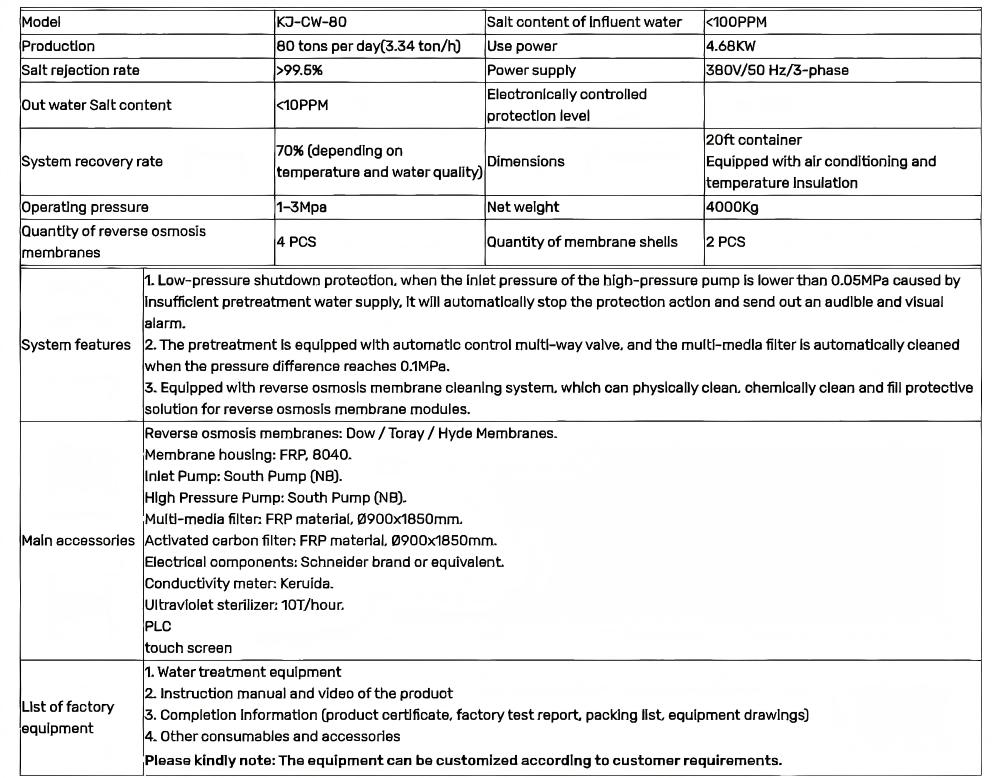

LPH:3000
Model:KJ-CW-80
Production:80 Tons Per day
Salt rejection rate:≥99.5%
System recovery rate:70% (depending on temperature and water quality)

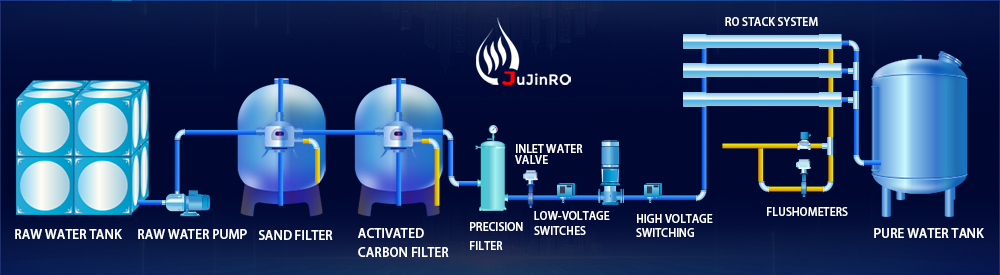

Raw water tank==> Raw Water Pump==> Sand Filter==> Activated Carbon Filter==> Precision Filter==> High Lifting Pump==> RO Stack system==> Pure Water Tank
*Please kindly note: Working process for reference only. Customized base on customer actual water condition.
● Reliable high-pressure pump, high operating efficiency, low energy consumption and long service life.
● High-efficiency reverse osmosis membrane, desalination rate up to 98.5%, strong anti-pollution ability, stable water quality.
● The frame pipes and pipe fittings are made of stainless steel and corrosion-resistant materials to ensure the durability of the equipment and low maintenance costs.
● The operation is simple and easy to use, easy to maintain, as long as there is electricity and water, fresh water can be supplied immediately after the pipe road is started.
● Wide range of power supply: 380V~440V/50~60HZ, which can adapt to most domestic environments.
● Secondary effluent water quality standard: TDS≤20mg/L.
● Long service life: 15-20 years, rigorous process design to ensure long service life and low maintenance cost of the equipment.
● The types of equipment combination can be realized: bracket type, skid-mounted type, pry truck type, container type, etc.
●Drinking water
●Food, beverage industry water
●Industry production water
●Boiler make-up water for the power industry
●Pharmaceutical industry
●Water supply for buildings, schools
